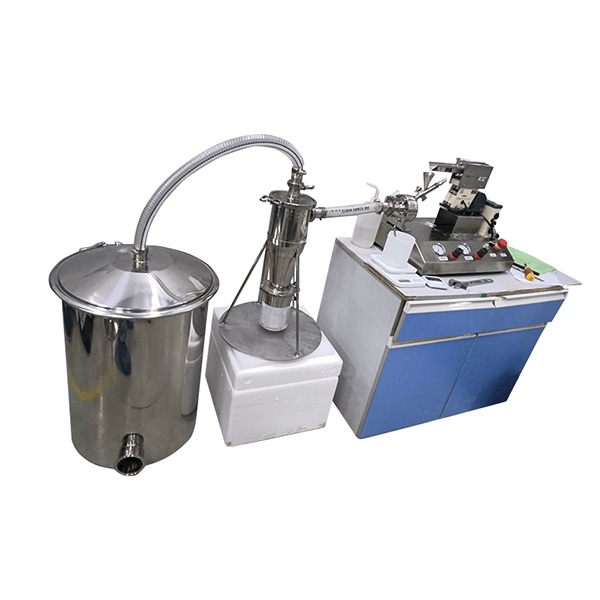

Air Flow Fibrosis Machine For Solid State Battery Assembly
Ⅰ、Introduction
The airflow fibrosis machine is a very compact desktop device developed for ultra-fine fibrosis and high recovery of a small amount of samples, which is very suitable for conducting experiments.
Ⅱ、Features
① Disassembly, cleaning, and assembly are very simple.
② Can be subjected to ultrafine crushing of extremely small amounts of samples (tens to hundreds of gram)
③ The amount of air used is very low (0.7m ³/ Min)
④ Low noise during operation
Ⅲ、Specification
Size | 650*290*565mm |
Barrel size | Φ100*50mm |
Weight | 20kg |
Power supply | AC220V 50HZ |
Air volume pressure | 0.7m³/min，0.69MPa |
Fibrosis machine | Disc air blower |
Lining | Alumina |
Particle size of crushed raw materials | Below 1mm |
Recovery | Collection bucket with SUS304 cyclone separator and built-in cloth bag (available in two sizes: ordinary collection bag and high-precision collection bag)
|
